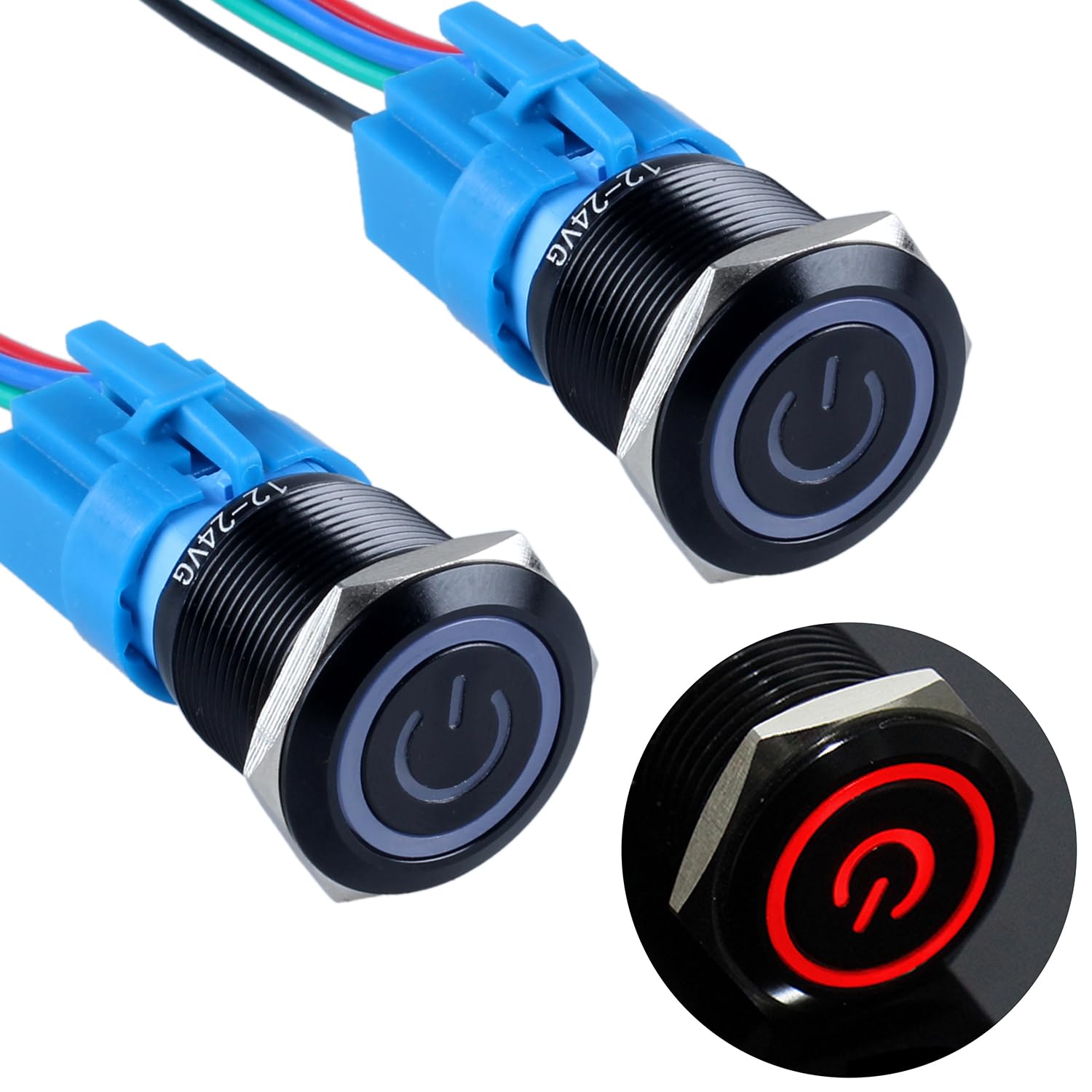

2Pcs 16mm Metal Latching Push Button Switch 12V-24V ON/Off 1NO 1NC Waterproof IP66 Black Shell with Pre-Wired Socket for 5/8’’ Mounting Hole Power Symbol (Red LED)
Product details
| Management number | 236842899 | Release Date | 2026/07/10 | List Price | US$5.20 | Model Number | 236842899 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- Latching: Press the button--ON, Press the button again--OFF; Electrical life: 100, 000 times, Mechanical life: 500,000 cycles
- Mounting Hole: 16mm(5/8"); Structure: 1NO 1NC; LED Light: 5A, 12-24V, Power Symbol Red; LED life: 40,000 hours

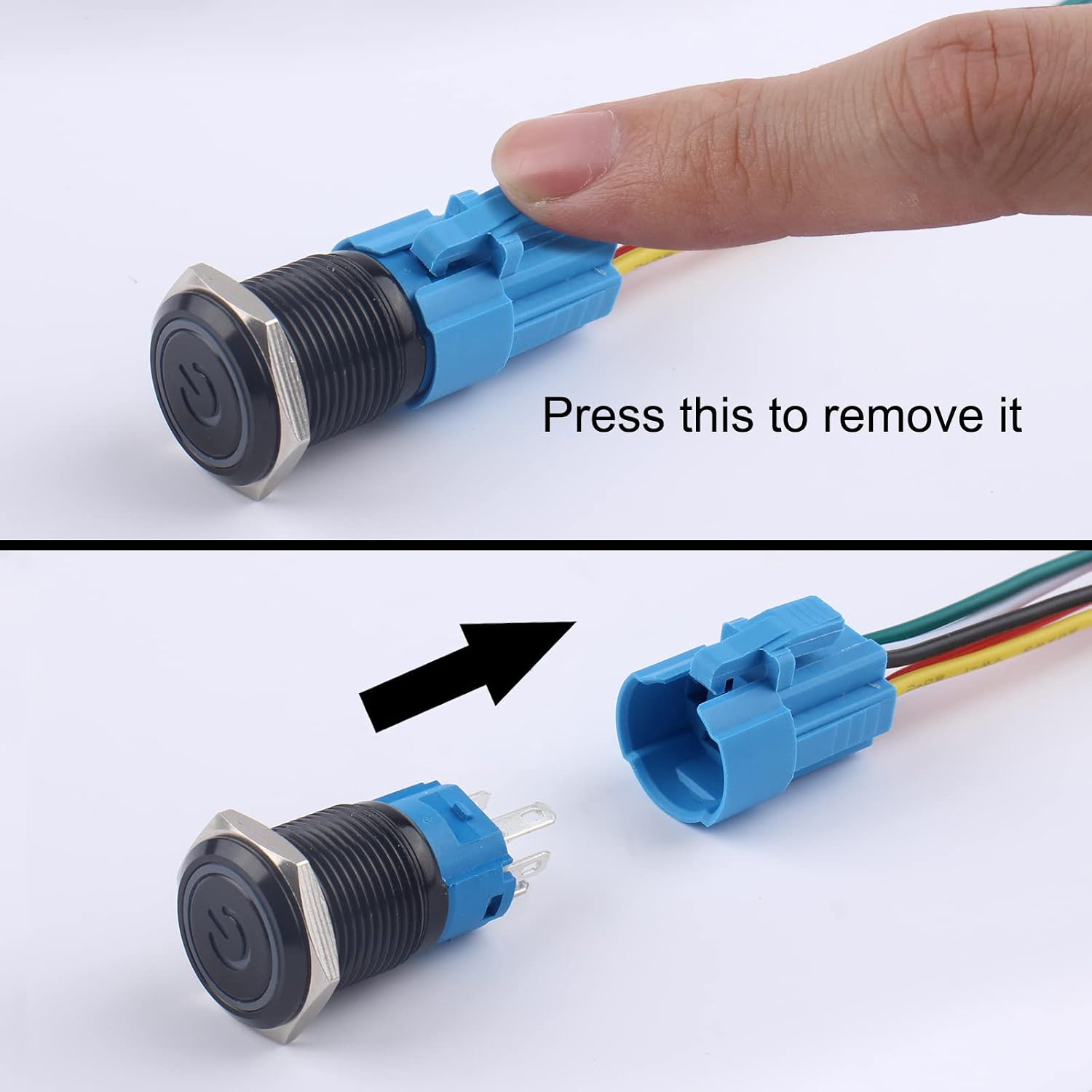

- 4 wiring methods: Normal Open or Normal Closed; LED light can be always on, or illuminates when the device is working; 5 brass terminals are connected to the wire socket, No need to solder which makes your operation much easier
- Protection Degree: IP66 Waterproof and dustproof; IK09 Anti-vandal rate. It can be used in wet or dusty environment; But Don’t immerse the button switch in water
- Wide Applications: Suitable for car, computer, instrument and meter industry, door bell, home appliance etc.
| ASIN | B0F2RRRM9Y |
|---|---|
| Color | Red |
| Model | ANDC-HXDYZS-YHH-16-R2-SA |
| Terminal | Screw |
| Brand Name | DMWD |
| Unit Count | 2.0 Count |
| Part Number | ANYHH-DYZSDC-16R-2T |
| Switch Type | Push Button |
| Circuit Type | 2-way |
| Contact Type | 1no1nc |
| Control Type | ON-OFF |
| Manufacturer | DMWD |
| Material Type | Metal |
| Mounting Type | Through Hole Mount |
| Connector Type | Plug In |
| Control Method | Push Button |
| Current Rating | 5 Amps |
| Operation Mode | ON-OFF |
| Item Dimensions | 0.7 x 0.7 x 1.38 inches |
| Number of Items | 2 |
| Contact Material | Silver |
| Operating Voltage | 12 Volts |
| Specification Met | Ip66, Ik09 |
| Compatible Devices | Various devices with compatible electrical requirements |
| Number of Positions | 1 |
| Smart Home Compatibility | Not Smart Home Compatible |
| Compatible with Vehicle Type | Multiple vehicle types |
| International Protection Rating | IP66 |
